WELCOME TO THE FUTURE
BIOROTOR, the most innovative RBC system in the world.
WELCOME TO THE FUTURE
BIOROTOR, the most innovative RBC system in the world.
BIOROTOR was created with the aim to develop an innovative wastewater treatment system which would not only provide superior wastewater treatment, but also work in a way never seen before.
This state-of-the-art commercial sewage system was specifically designed to be more efficient, compact, robust, and simple to operate and maintain than any existing system.
It incorporates numerous innovative processes, and each of its components was carefully crafted by our team of engineers, aiming to take existing systems to the next level.

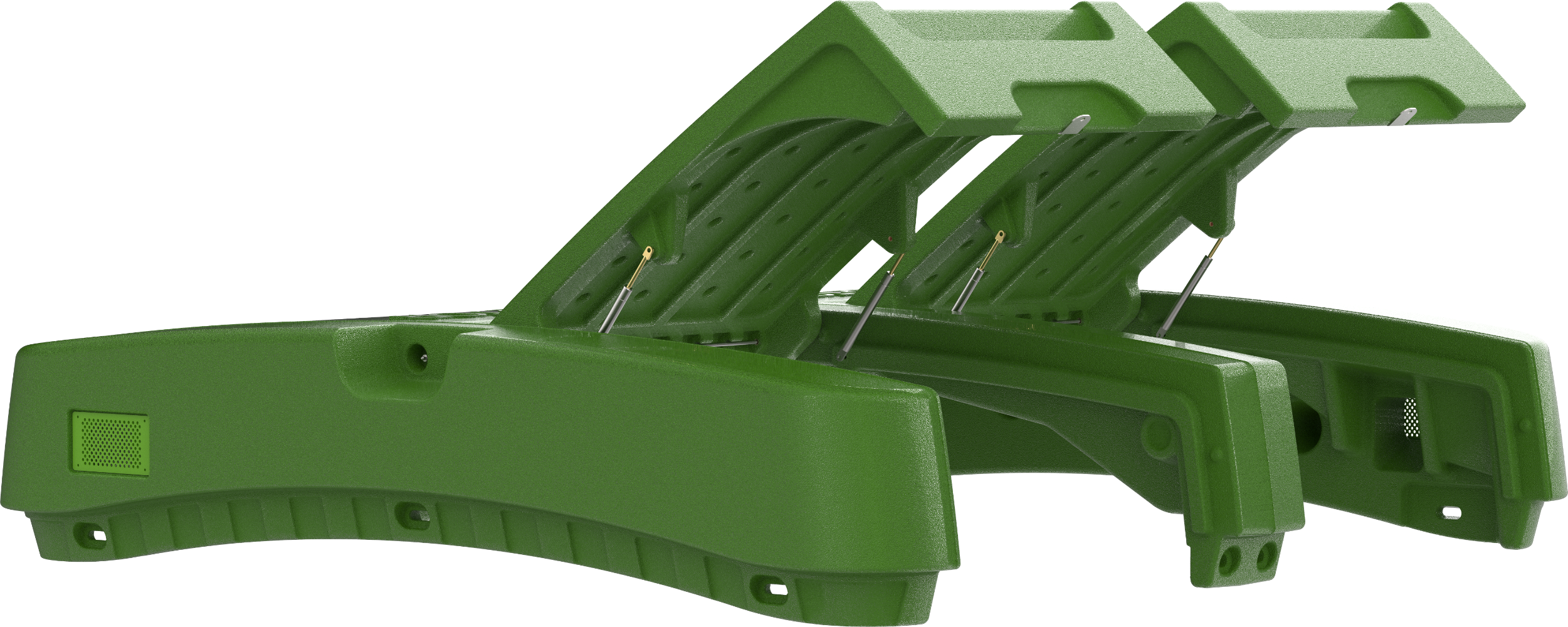

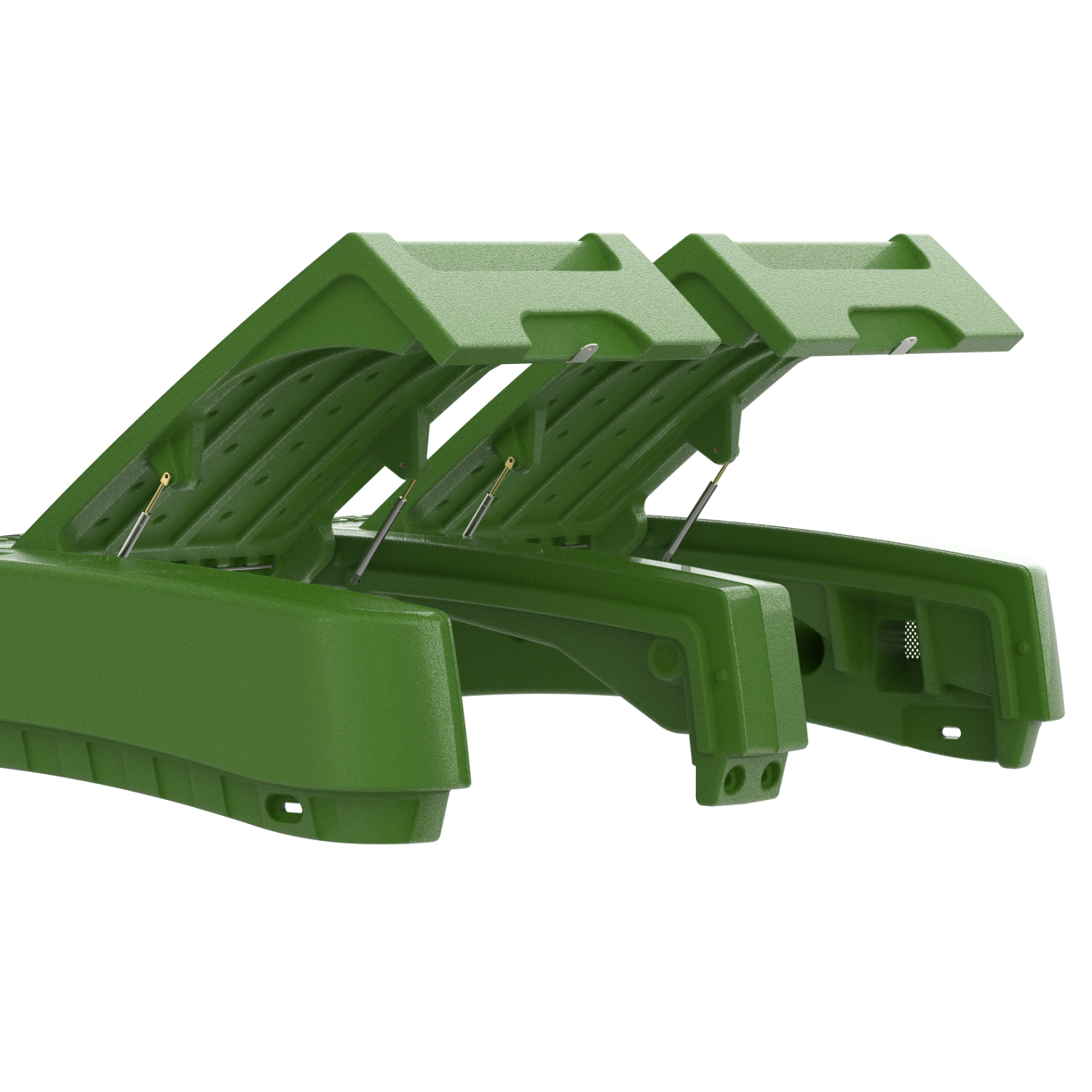

Lockable Covers
The covers are lightweight and lockable for single-handed access during routine inspection or maintenance.
All system components are easily accessible from any of the 4 covers, and the entire cover assembly is removable for mid-life refurbishment.
Lockable Covers
The covers are lightweight and lockable for single-handed access during routine inspection or maintenance.
All system components are easily accessible from any of the 4 covers, and the entire cover assembly is removable for mid-life refurbishment.

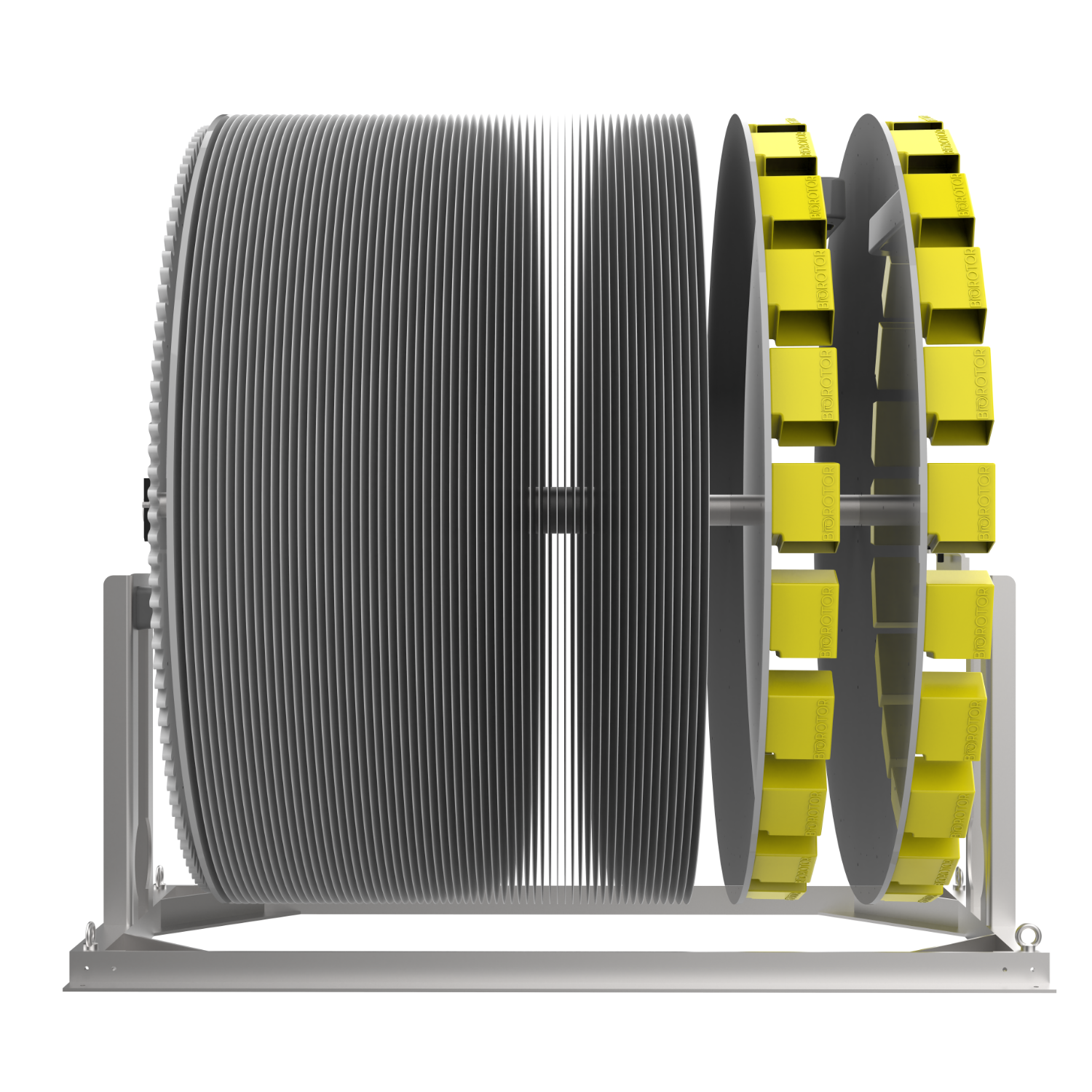

High-Quality Media
The BIOROTOR’s media is made with flat virgin Polypropylene (PP) discs that have a diameter of 2.0 meters.
This high-quality media also ensures a consistent biofilm thickness with continuous biofilm sloughing to maintain an ideal biomass for effective treatment.
The first and the last disc have a thickness of 15 mm and the interior discs 1.7 mm.

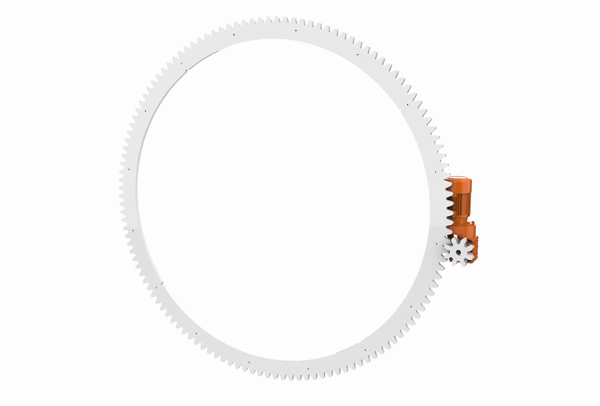

Revolutionary Ring Gear Drive
Unlike other existing RBCs, BIOROTOR uses a revolutionary ring gear drive, eliminating troublesome gearboxes, improving reliability, and significantly reducing maintenance.
BIOROTOR optimizes energy efficiency by incorporating a ring gear drive on the outer perimeter of the disc. This eliminates large, heavy and costly gearboxes in shaft drive or sprocket drive arrangements.
Lockable Covers
The covers are lightweight and lockable for single-handed access during routine inspection or maintenance.
All system components are easily accessible from any of the 4 covers, and the entire cover assembly is removable for mid-life refurbishment.
Lockable Covers
The covers are lightweight and lockable for single-handed access during routine inspection or maintenance.
All system components are easily accessible from any of the 4 covers, and the entire cover assembly is removable for mid-life refurbishment.

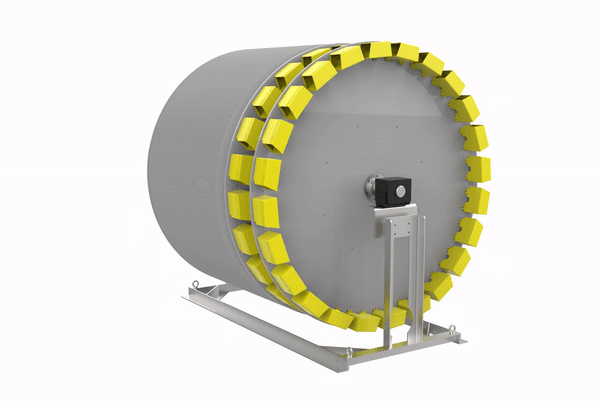

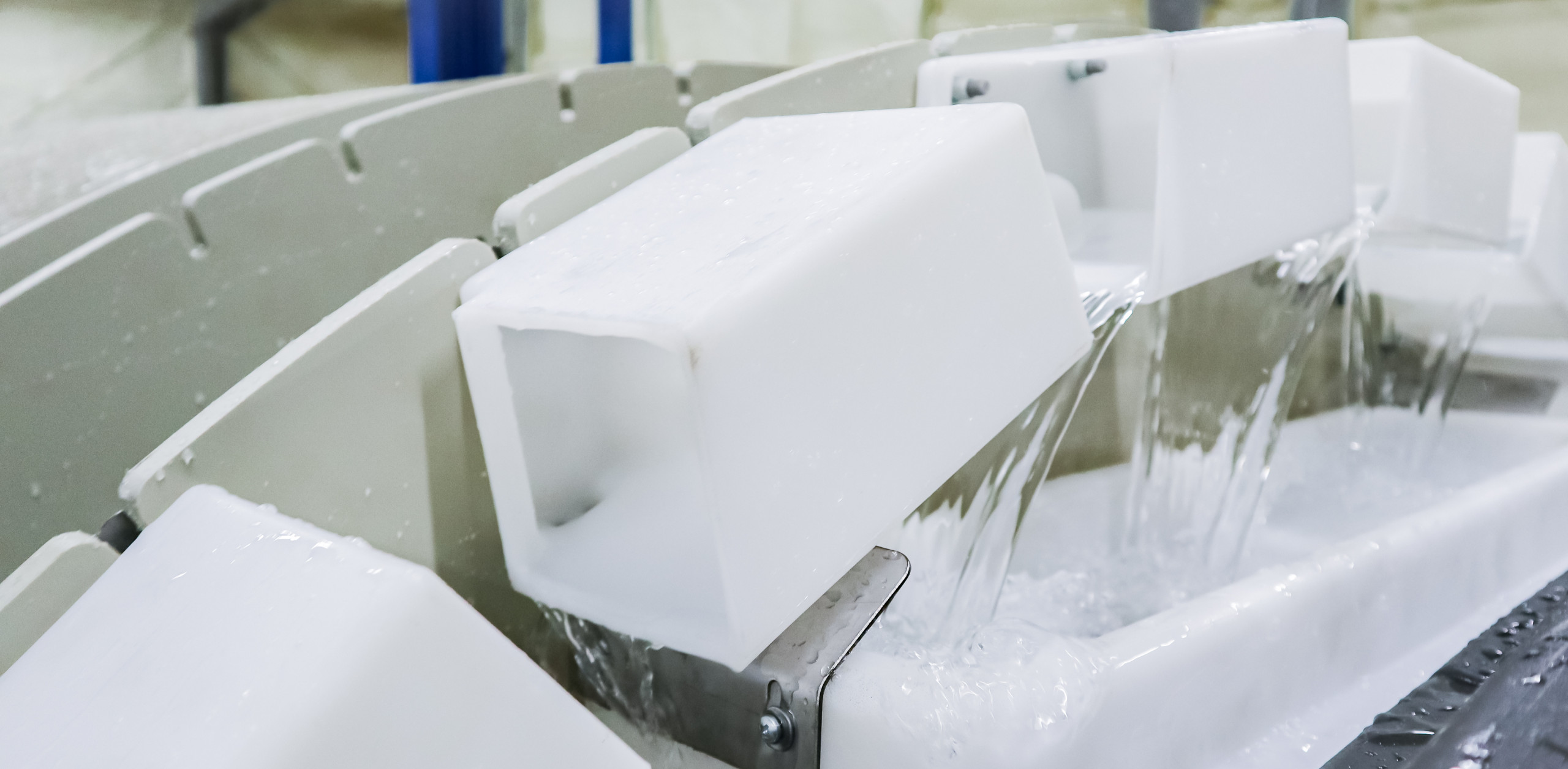

Improved Water Transfer Buckets
A bucket elevator system enables process versatility, enabling flow control, nutrient removal processes, or lifting for downstream processes.
This forward flow is controlled by means of buckets attached to the discs to transfer a consistent volume of water engined by the rotation of the shaft.
The BIOROTOR’s media is made with flat virgin Polypropylene (PP) discs that have a diameter of 2,000 mm.
This self-cleaning media also ensures a consistent biofilm thickness with continuous biofilm sloughing to maintain an ideal biomass for effective treatment.
The first and the last disc have a thickness of 15 mm and the interior discs 1.7 mm.
Self-Cleaning Media
Revolutionary Gear Drive
Unlike other existing RBCs, BIOROTOR uses a revolutionary ring gear drive, eliminating troublesome gearboxes, improving reliability, and significantly reducing maintenance.
BIOROTOR optimizes energy efficiency by incorporating a ring gear drive on the outer perimeter of the disc. By this eliminating large, heavy and costly gearboxes in shaft drive or sprocket drive arrangements.
Ingenious Short Shaft
A short single-piece stainless steel shaft is utilized to keep the overall mechanical design weight at a minimum without compromising on the structural integrity of the critical drive components.
This considerably reduces the load and wear on the drive, shaft and bearings.
Ingenious Short Shaft
A short single-piece stainless steel shaft is utilized to keep the overall mechanical design weight at a minimum without compromising on the structural integrity of the critical drive components.
This considerably reduces the load and wear on the drive, shaft and bearings.
Improved Water Transfer Buckets
A bucket elevator system enables process versatility, enabling flow control, nutrient removal processes, or lifting for downstream processes.
This forward flow is controlled by means of baling devices attached to the media assembly to transfer a consistent volume together with the rotation of the shaft

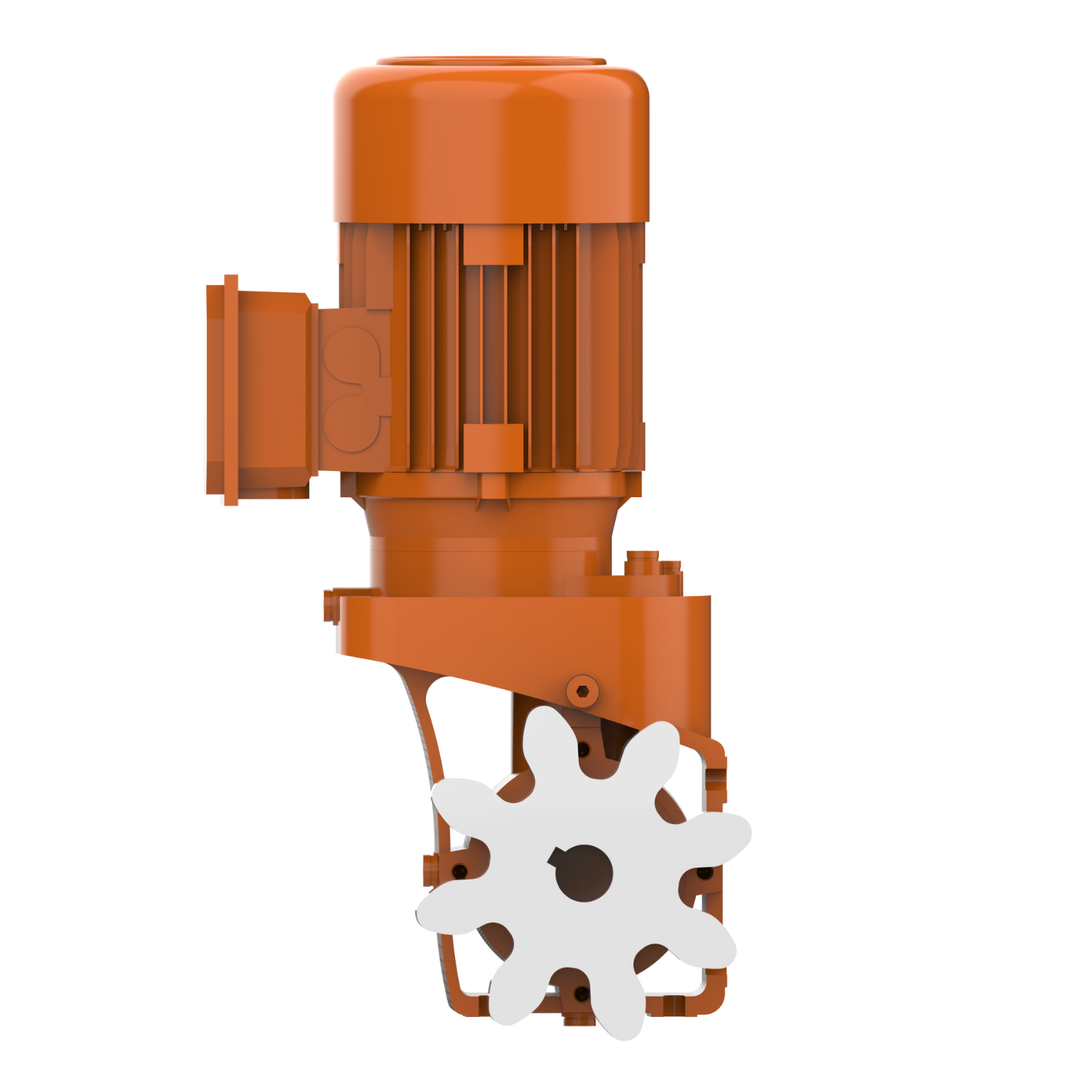

Independent Low Power Motor
Inside every BIOROTOR module is a small, independent drive motor, which allows each module to operate separately, thereby reducing energy and dependability compared to other RBC systems with one large dedicated motor.
This feature also lends to the modularity of BIOROTOR as additional modules can be added with minimal disruption or downtime.
Independent Low Power Motor
Inside every BIOROTOR module is a small, independent drive motor, which allows each module to operate separately, thereby reducing energy and improving dependability.
This feature also lends to the modularity of BIOROTOR as additional modules can be added with minimal disruption or downtime.

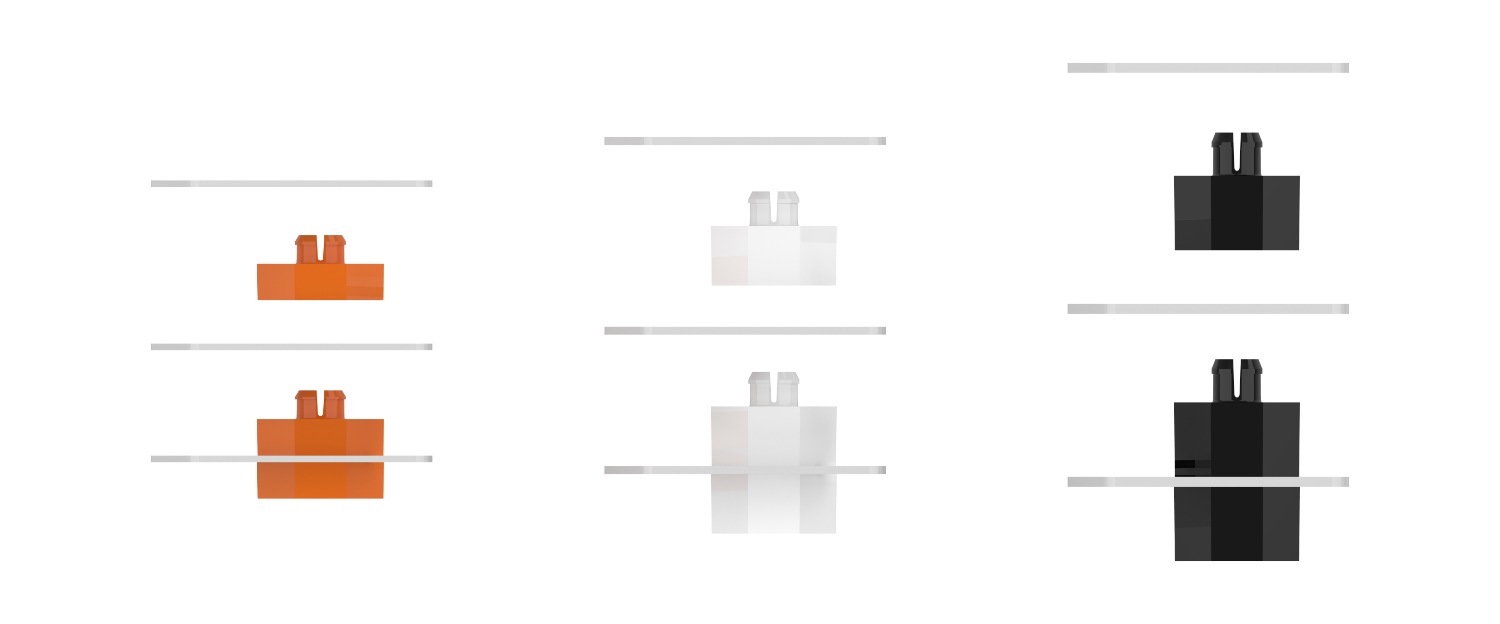

Novel Spacer Design
BIOROTOR features a novel spacer design to ensure unsurpassed stability of the disc package.
We have 3x spacers, 11 mm, 15 mm and 17 mm.
Novel Spacer Design
BIOROTOR features a novel spacer design to ensure unsurpassed stability of the disc package.
We have 3x spacers, 11 mm, 15 mm and 17 mm.

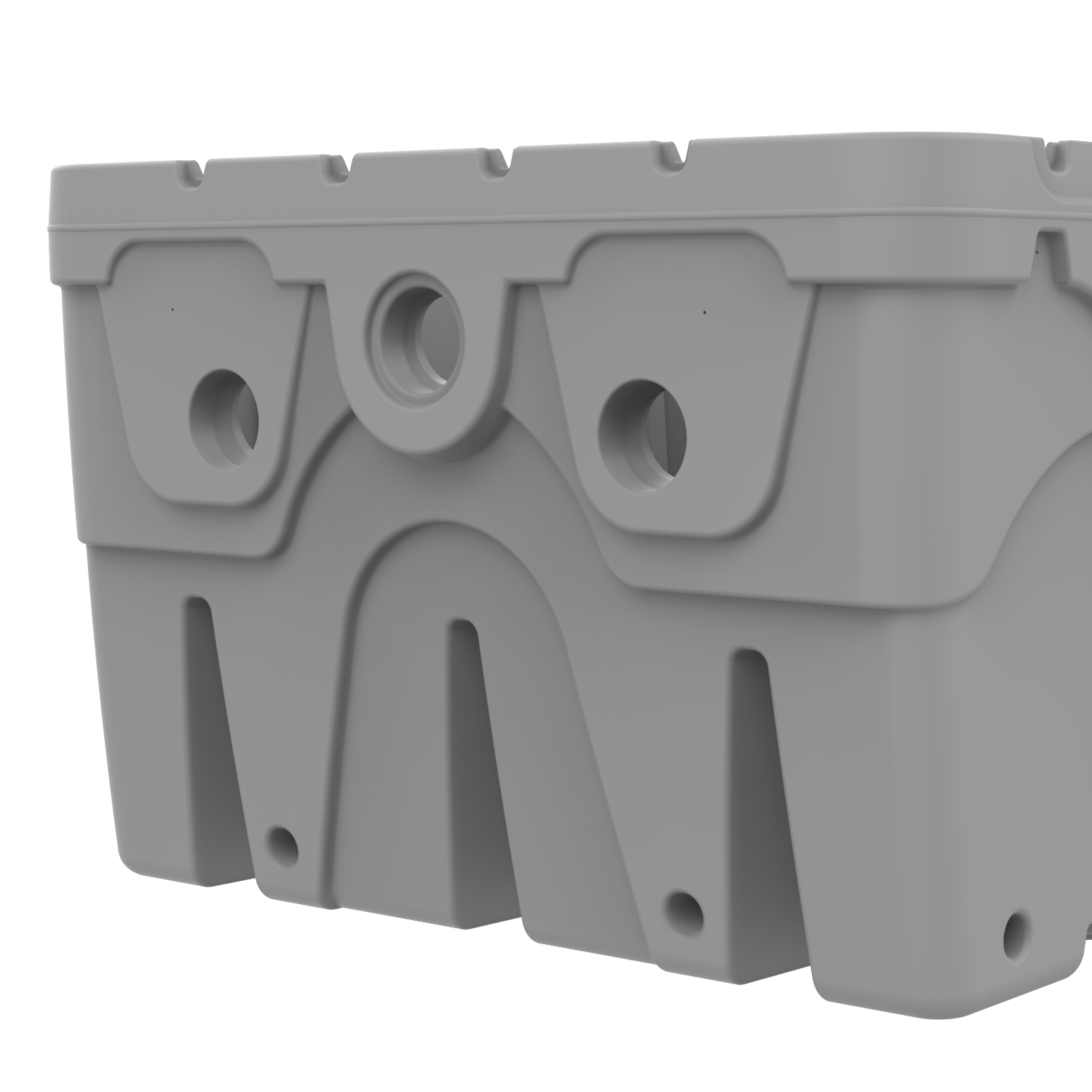

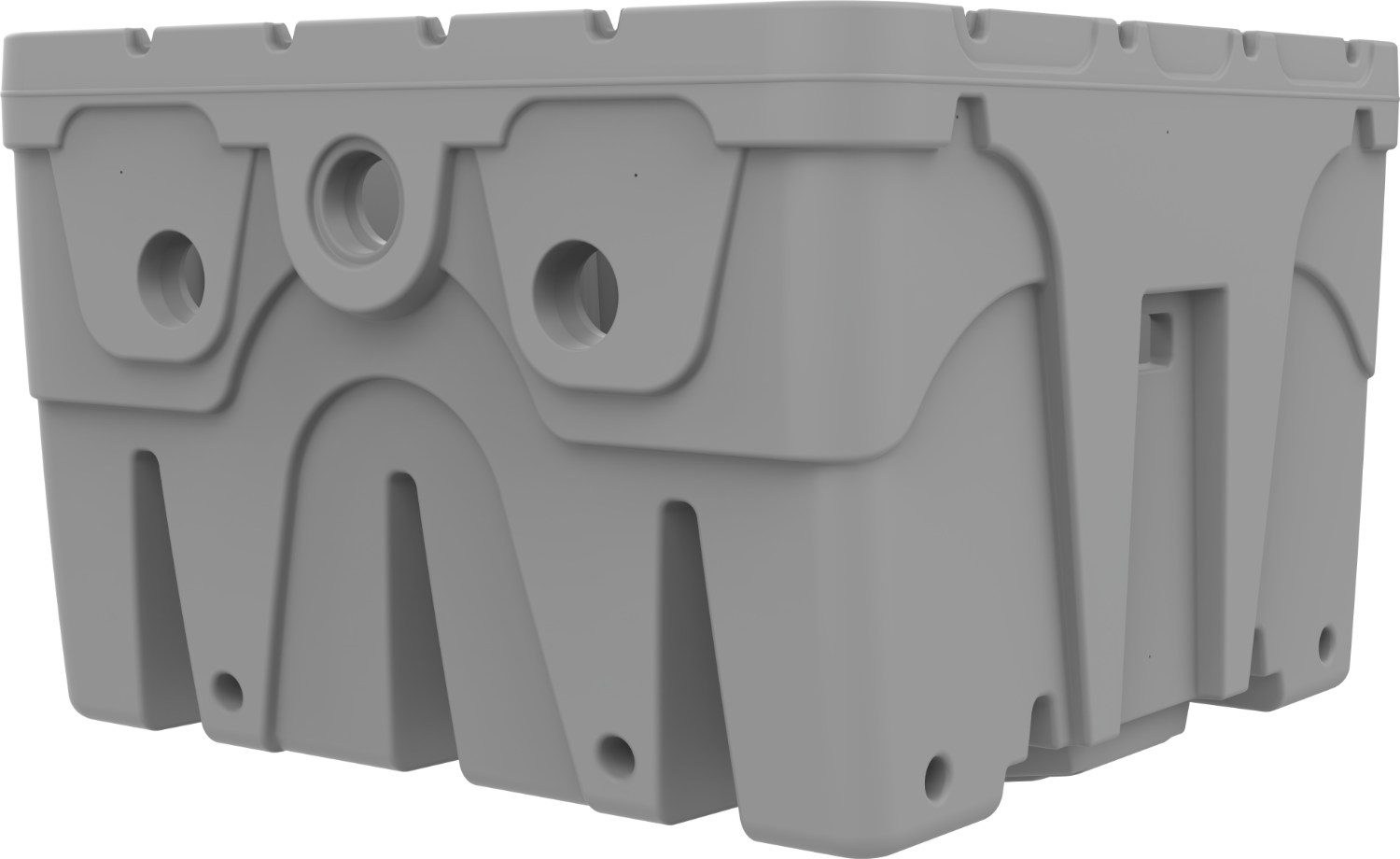

Robust Rotomolded Tank
Robust corrosion resistant materials, such as polyethylene plastic and stainless steel, are used throughout the construction, guaranteeing a long service life.
The tank comes with 6 integrated ports to enable a quick and simple installation. This allows to support installation arrangements with varied inlets, outlets or junctions.
Robust Rotomolded Tank
Robust corrosion resistant materials, such as polyethylene plastic and stainless steel, are used throughout the construction, guaranteeing a long service life.
The tank comes with 6 integrated ports to enable a quick and simple installation. This allows to support installation arrangements with varied inlets, outlets or junctions.
Robust Rotomolded Tank
Robust corrosion resistant materials, such as polyethylene plastic and stainless steel, are used throughout the construction, guaranteeing a long service life.
The tank comes with 6 integrated ports to enable a quick and simple installation. This allows to support installation arrangements with varied inlets, outlets or junctions.

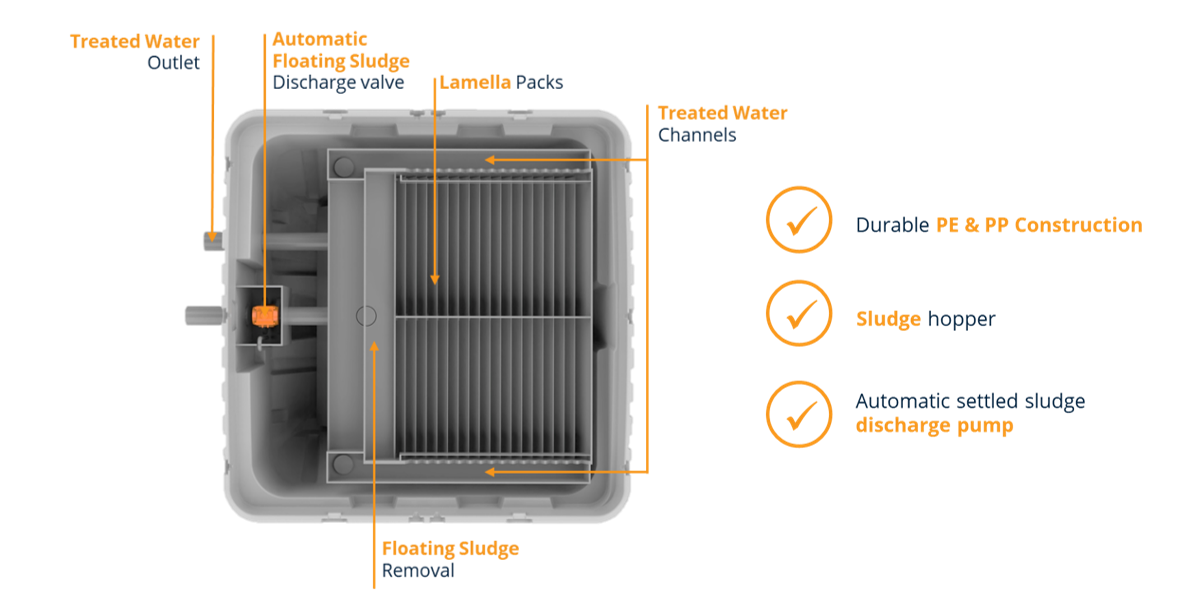

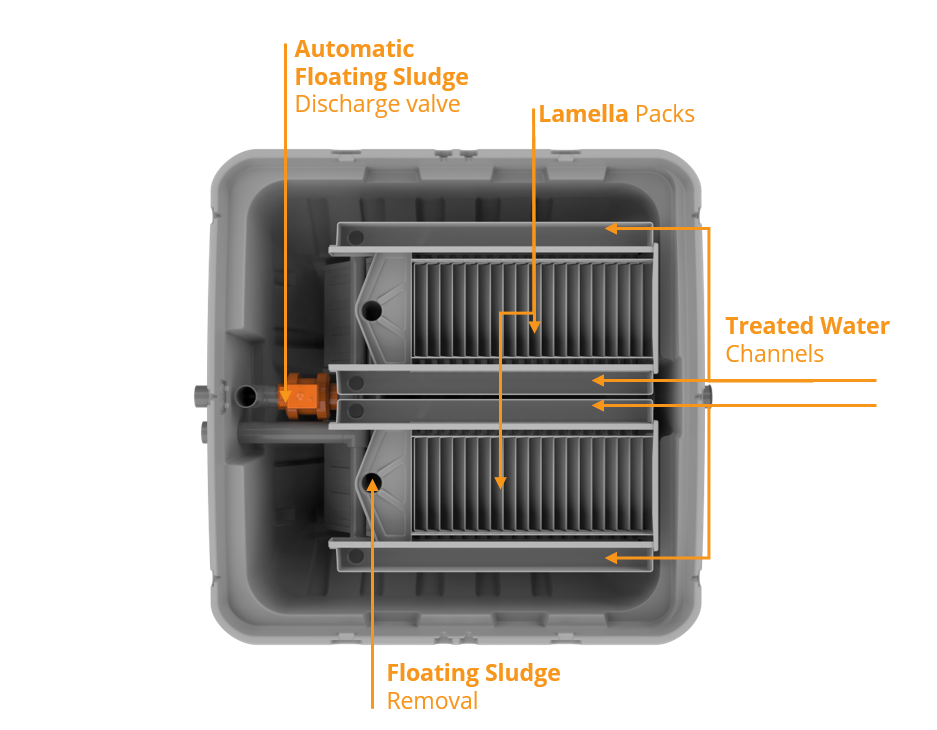

BIOROTOR’s Lamella Clarifier
The BIOROTOR process complies with even the strictest effluent quality standards thanks to its versatile process configurations and efficient final settlement unit.
BIOROTOR’s Lamella Clarifier
The BIOROTOR process complies with even the strictest effluent quality standards thanks to its versatile process configurations and efficient final settlement unit.
